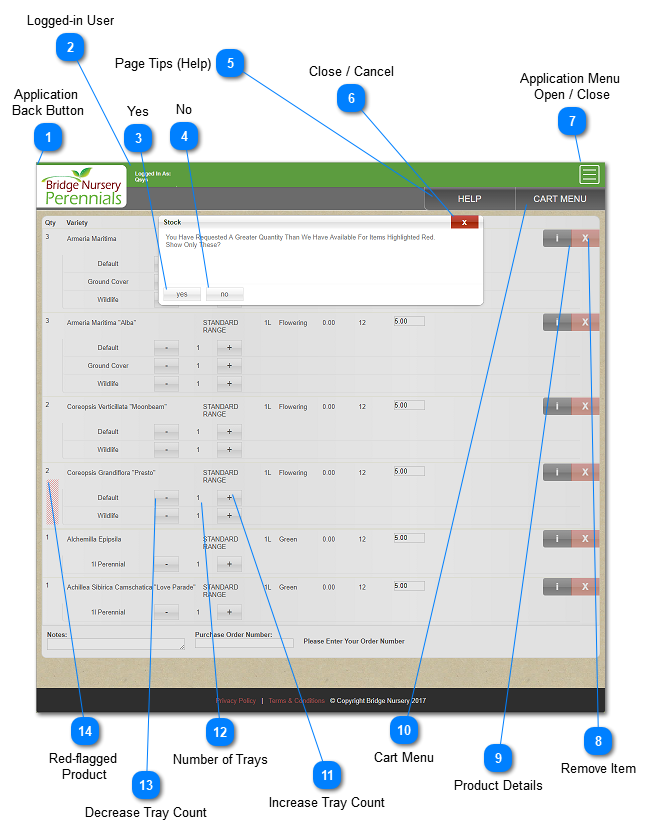

1.3.2.3. Order Edit (Cart)


Here's where the user can go over the items in their cart, because the system does an automatic stock level check and marks those that are over the current available stock for the user to change the quantity of trays, or just remove an item altogether.

1.3.2.3. Order Edit (Cart)
1

Application

Back Button

1. Application
Back Button
This is the position of the Back Button for this application. No matter what image may be displayed, it always overlays the Back button when in this position.
Users are strongly advised to use only this to step back through the online ordering system, and not use the browser's back button.
2

Logged-in User

2. Logged-in User
The name of the user who is currently logged-in and working on their unsubmitted order.
3

Yes

3. Yes
Agrees to be shown only the red-flagged items in the order so they can adjust the number of trays quantity until the item is no longer flagged.
4

No

4. No
Agrees to be shown everything including the red-flagged items in the order so the user can adjust the number of trays quantity until the item is no longer flagged.
5

Page Tips (Help)

5. Page Tips (Help)
Tips for the user on how best to use this page to get their desired results.
6

Close / Cancel

6. Close / Cancel
Cancel out of the Cart Edit action and close the Cart Menu choices dialog window.
7

Application Menu

Open / Close

7. Application Menu
Open / Close
Shows and hides the main menu items that allow a logged-in user to go back and forth through the various pages of this application without losing their orders. The options on this screen are:
Order Online
Order History
Log Out
User Manual
8

Remove Item

8. Remove Item
The button on each item row that one must use to remove said item from the current order.
9

Product Details

9. Product Details
Shows the complete details of the product in a popup window.
10

Cart Menu

10. Cart Menu
This pulls up the Edit Cart Menu dialog.
11

Increase Tray Count

11. Increase Tray Count
Increases the number of trays of the particular product in the current order.
12

Number of Trays

12. Number of Trays
Shows the number of trays of the product that are in the order. The Increase ( + ) and Decrease ( - ) tray count buttons control the value.
13

Decrease Tray Count

13. Decrease Tray Count
Decreases the number of trays of the particular product in the current order.
14

Red-flagged

Product

14. Red-flagged
Product
Indicates a shortfall in the available number of trays vs. the number requested in the order (cart), and that until the counts are adjusted using the + and - buttons, this order cannot be submitted. This vanishes as soon as the counts are appropriately adjusted.
